齒輪聯軸器的瓣合模機構研究及注塑模設計
- 文件介紹：

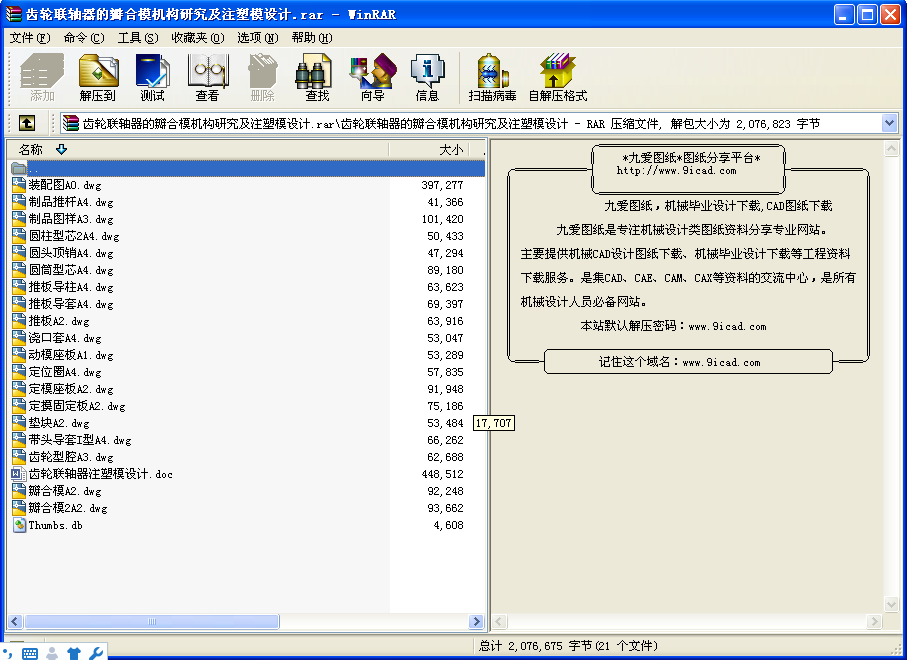

- 該文件為 rar 格式（源文件可編輯），下載需要
20 積分
-
- 齒輪聯軸器的瓣合模機構研究及注塑模設計
齒輪聯軸器注射模設計
摘 要
我國的塑料成型模具設計，制作技術比較晚，整體水平還比較低。目前單型腔、簡單型腔的模具達70%以上，仍占主導地位。該設計，通過對多種相似塑件的模具結構參考，設計出了該塑件（齒輪聯軸器）的一模四腔的平衡式布置的模具。采用兩瓣合模側向分型機構，與塑尖的推出同時進行；采用了組合式型芯、型腔，使加工工藝簡化、可行。
關鍵詞：齒輪聯軸器；單型腔；多型腔；瓣合模；側向分型；組合式
Abstract
In our country, because of the late of manufacture beginning the totality standard of mold design is very low about the plastics of taking shape. Nowadays, the proportion of odd casement, simple casement mold is over 70percent which is still dominant. By reference of some mold structure of resemble plastics product, I had adapted to two modules structure which has been used in separate of side direction. Meanwhile, the push of plastics product is moving. In addition, because I had adapted to composed axle and casement, the process planning is becoming simple and feasible.
Key words: axle-link-gear vessel; odd casement; excessive casements; petal mold modules; separate of side direction; compose
第1章 塑件成型工藝分析
一、塑件（齒輪聯軸器）分析
1. 塑件模型：
圖1
2. 塑料：PA66（又名尼龍66，簡寫為FRN66）
3 .色調：不透明（藍色）
4 .生產綱領：大批大量
5 .工藝性與結構分析：
（1）精度等級：采用一般精度5級
脫模斜度：型腔25-40 ...
